This concept is derived from thoughts based on the communal aspects available between individual housing units.

It presents some opportunities for development into infill housing scenarios, though the footprint is quite large on each lot area. Standard residential construction keeps the technical details simple.

The basics of this concept are:

•     Eight bedrooms per lot area.

•     Total units on site = 24 (12 ganged lots)

•     Total bedrooms = 192

•     Two storeys (could be increase to three easily for a total of 216 beds)

•     Areas adjacent atrium could be designed with operable wall units to allow opening up of suites direct to atrium areas. (Communal gathering options)

•     Atria of adjacent units could be linked for a central spine, creating a common corridor serving multiple units (See HUB Mall, University of Alberta, Edmonton, Alta)

•     Walk-up entrance on interior for second storey.  Main floor can enter through atrium or separate exterior entrance.

•     Radial site plan for pedestrian circulation only.  Housing units are planned in rectilinear layout (direct n/s or e/w orientation)

•     Round elements (Aboriginal influence) incorporated into site layout

•     Hmmmm, I had thought of other things but they escape me right now.

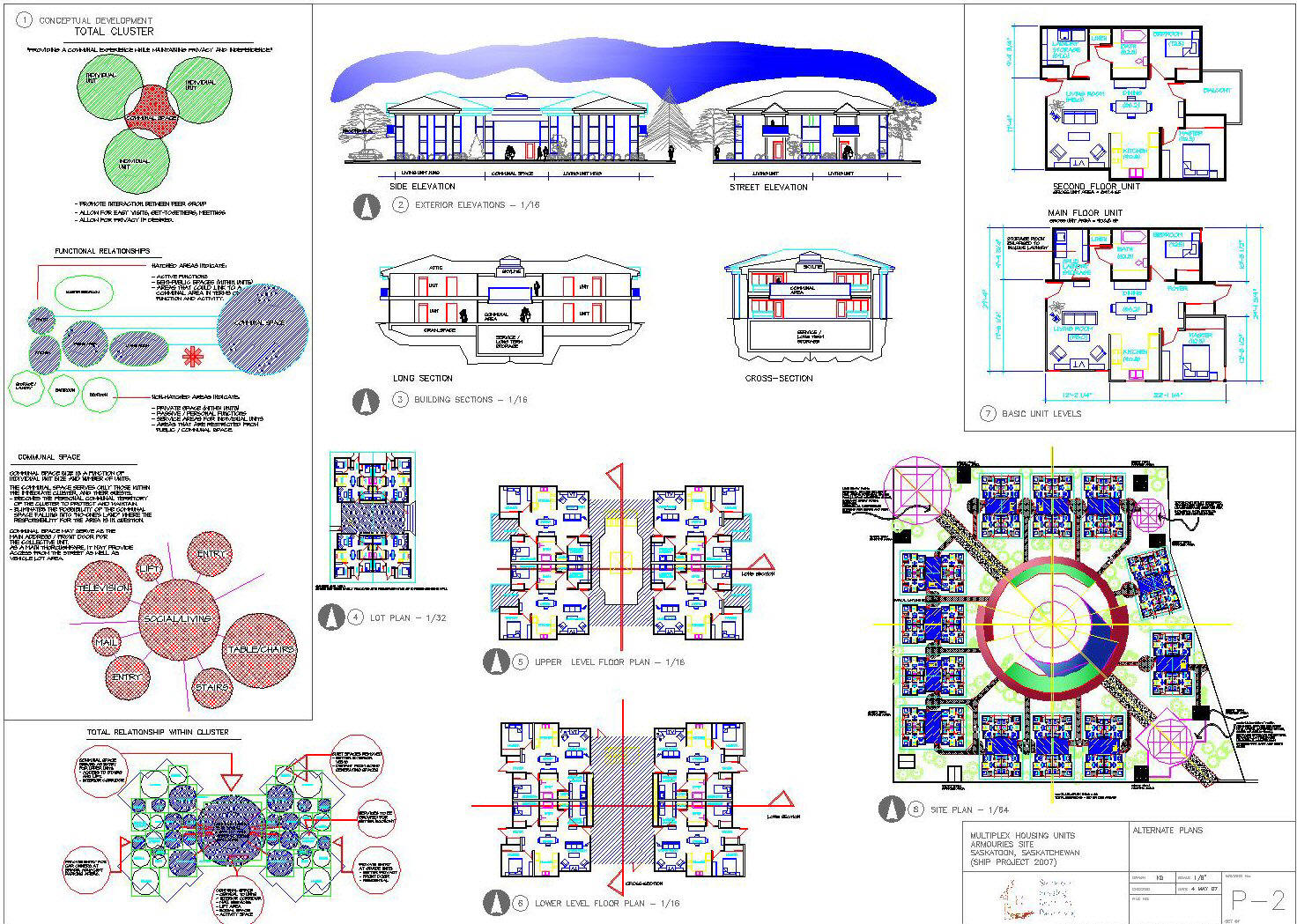

The table below takes you to the elements of the drawing.

Detail Button	Detail No.	Detail Name	Detail Description	Additional Comments
	---	Overall Drawing	The full drawing presenting the entire drawing illustrated.	This page will provide an overview of the components listed below
	1	Conceptual Development	Graphics illustrating how the concept was developed	Simple studies and explanations to the reasons why certain choices were made in this concept.
	2	Exterior Elevations	Full views of the exposed sides (for combined units). A single unit would present a fourth view for the side.	really early conceptual elevations illustrating the plan resolution. Haven't really thought too much about finishes and glazing as the input of the team may determine most of that. Massing and roof lines still to resolve.
	3	Building Sections	Two cross-sectional views through combined units	Early section studies for massing and interior volumes.
	4	Lot Plan	Paired  units on double lot	Illustrates that it is tight for these units on a combined 33-33 lot width. There remains 4' on either side, which totals a minimum of 8;' between units; a distance still considered. tight.
	5/6	Floor Plans	Ganged 2-bedrooms units around a common central atrium	atrium area illustrated, full balcony...Still being thought about but looking for team input.
	7	Basic Unit Levels	Individual Unit layouts complete with net floor areas	A large scale graphic for the units and their functions. Dimensions included for reference purposes.
	8	Site Plan	Entire Site illustrated with potential units	A radial plan to the site circulation only. The paired units are aligned directionally; rotation doesn't work with the sizes. Water element included on the SE quadrant of the circulation core. Sidewalks/Paths reflect the solar solstice (see previous studies) Rectilinear residences don't allow for optimum exposure to sun.  Clear views through atriums do allow solar access to interior spaces. Short term parking illustrated since the pizza guy has to park somewhere during deliveries.  Can also be used for picking up/dropping off residents. Thoughts on the outbuildings included.
